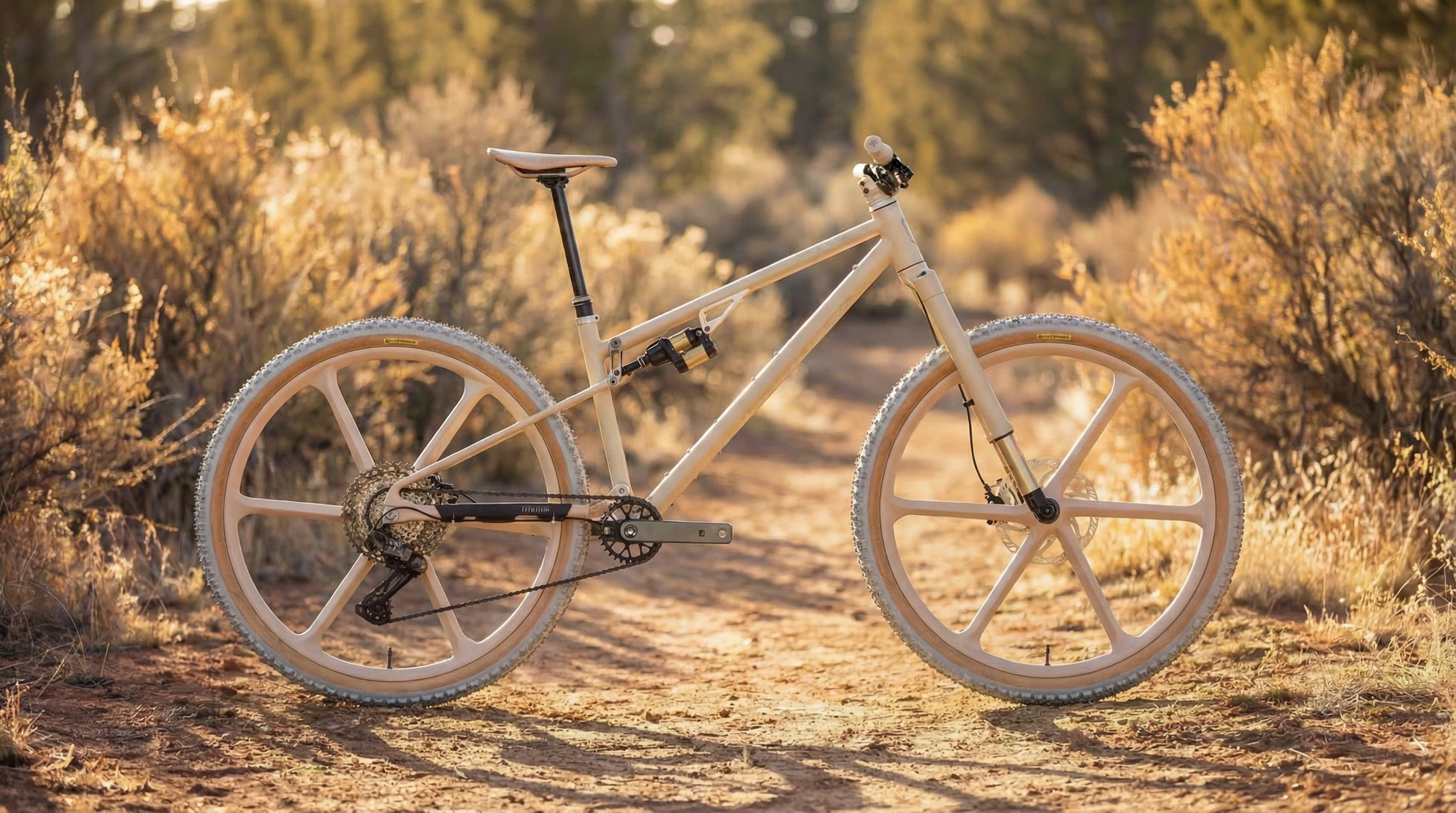

CHABO Trail Bike

CHABO Trail Bike

Normaler Preis €3.200,00 EUR
Normaler Preis Verkaufspreis €3.200,00 EUR
Sale Ausverkauft
Inkl. Steuern.
Size
Farbe

HUHN CYCLES – CHABO



PREORDERS OPEN NOW >>> SHIPPING STARTS MARCH 2025

Overview

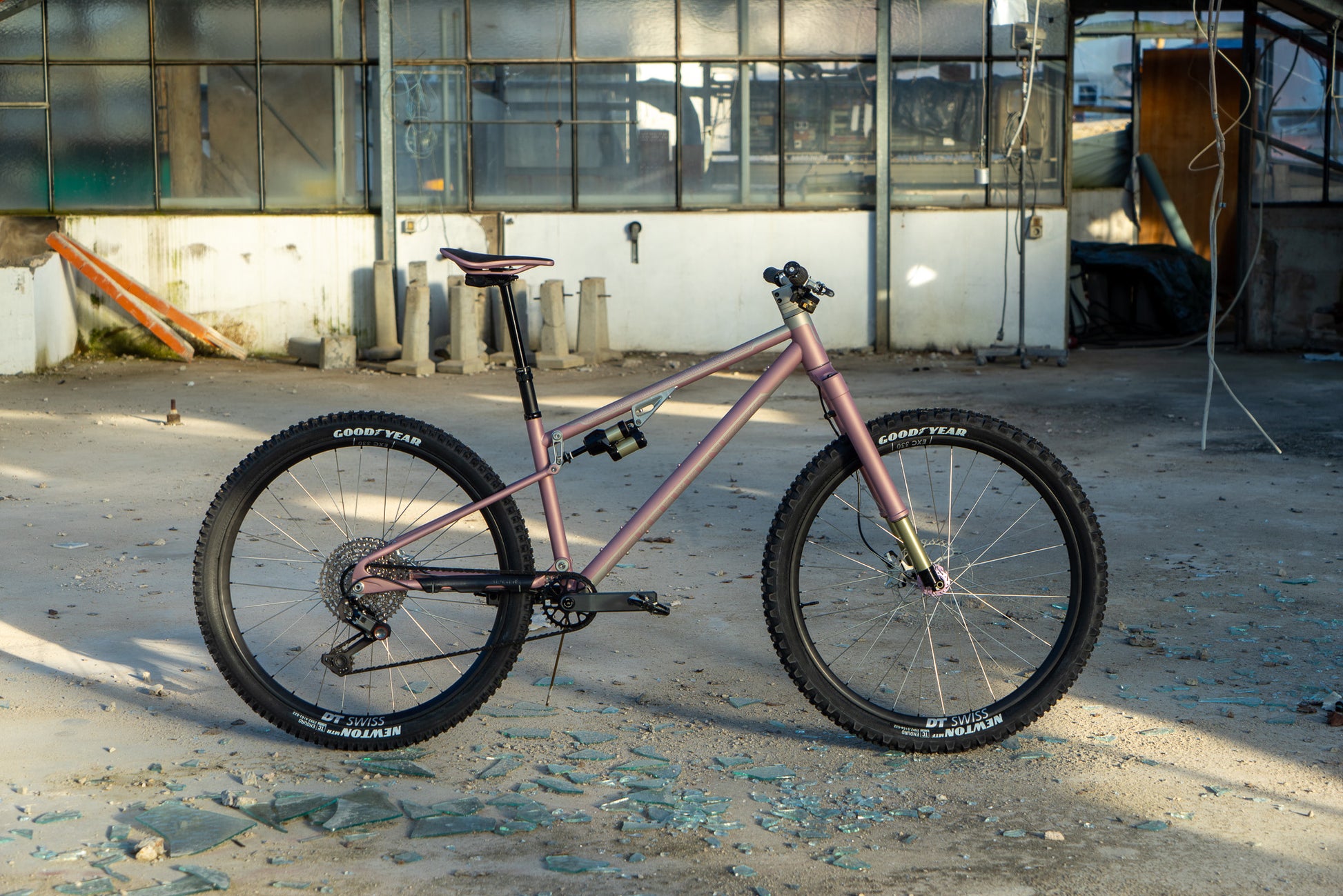

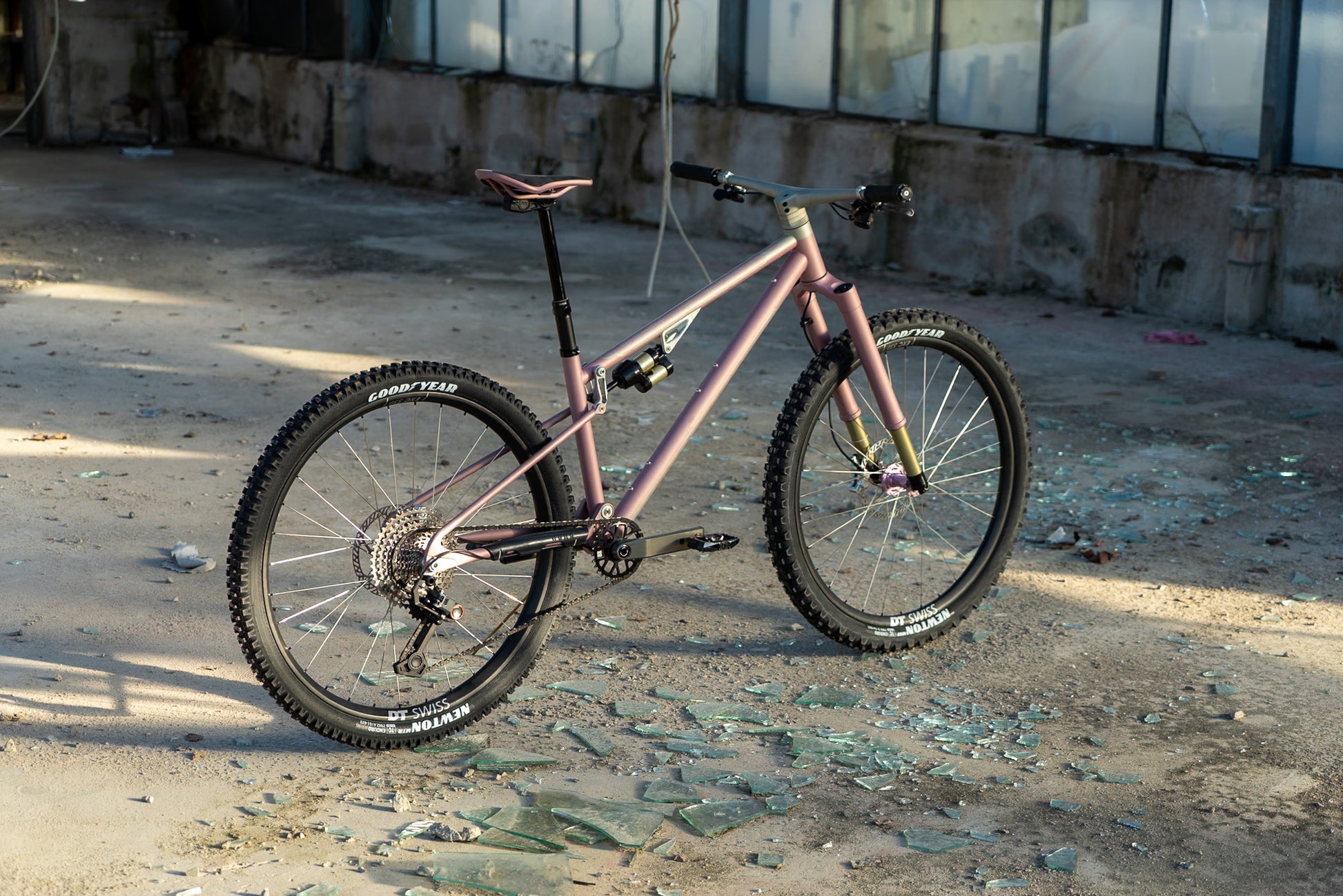

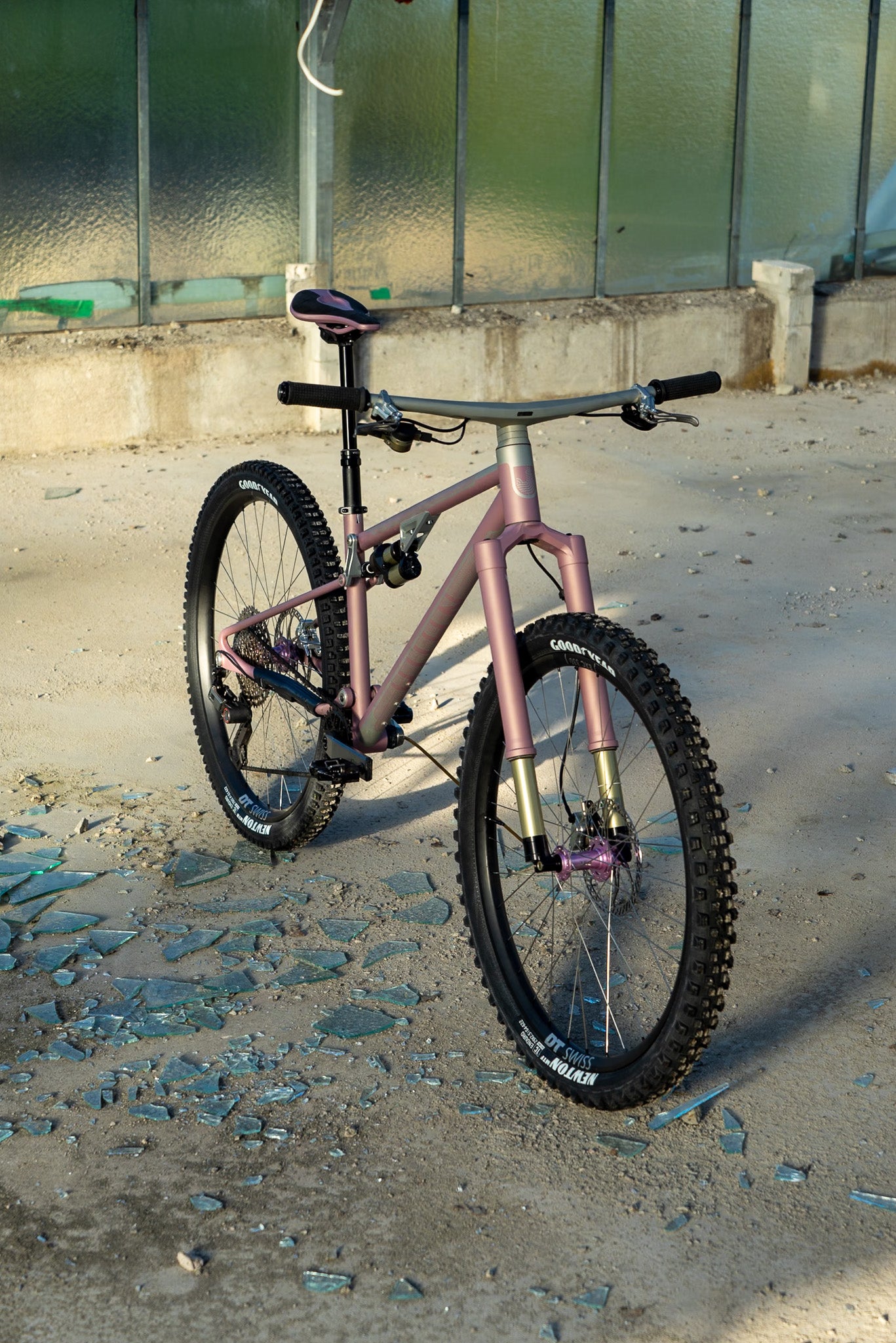

The Chabo is your ultimate trail and adventure bike, designed for riders who want versatility and performance. Whether you're tackling technical trails or embarking on bikepacking tours, the Chabo offers smooth control with 130mm front suspension and 120mm rear suspension for responsive handling. Inspired by the resilient Chabo chicken, this bike is built for adventure and durability.


Key Features

  • 130mm front suspension / 120mm rear suspension for versatile trail riding
  • Progressive flex pivot rear suspension kinematic for optimized performance on any terrain

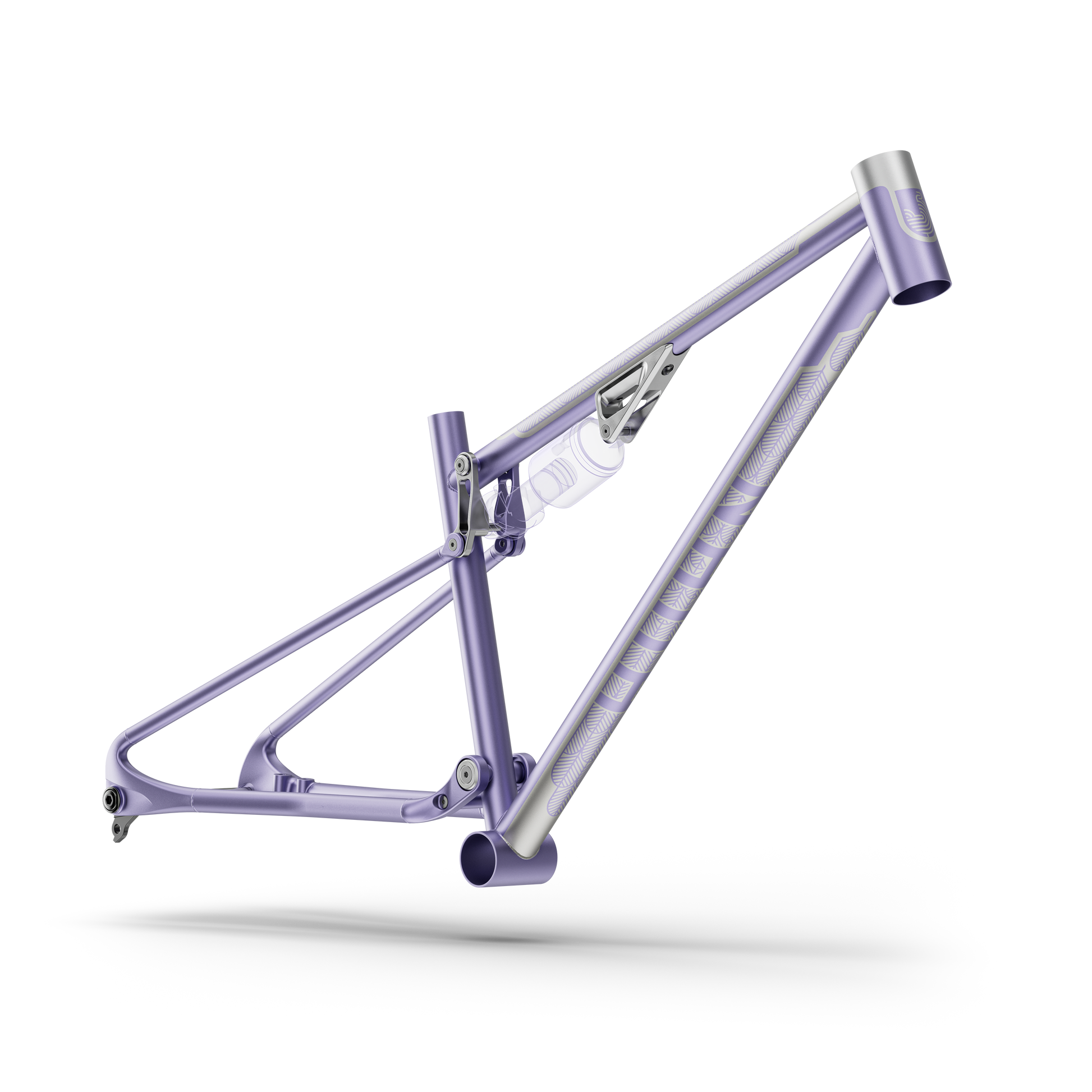

  • Reynolds 853 steel frame, lightweight, durable, and 100% recycled, for exceptional strength and ride feel
  • Mounting points for 3 x 750ml bottles and racks (2x 750ml on the Downtube inside the frame, and 1x 3 M5 Bosses on the bottom side of the Downtube)

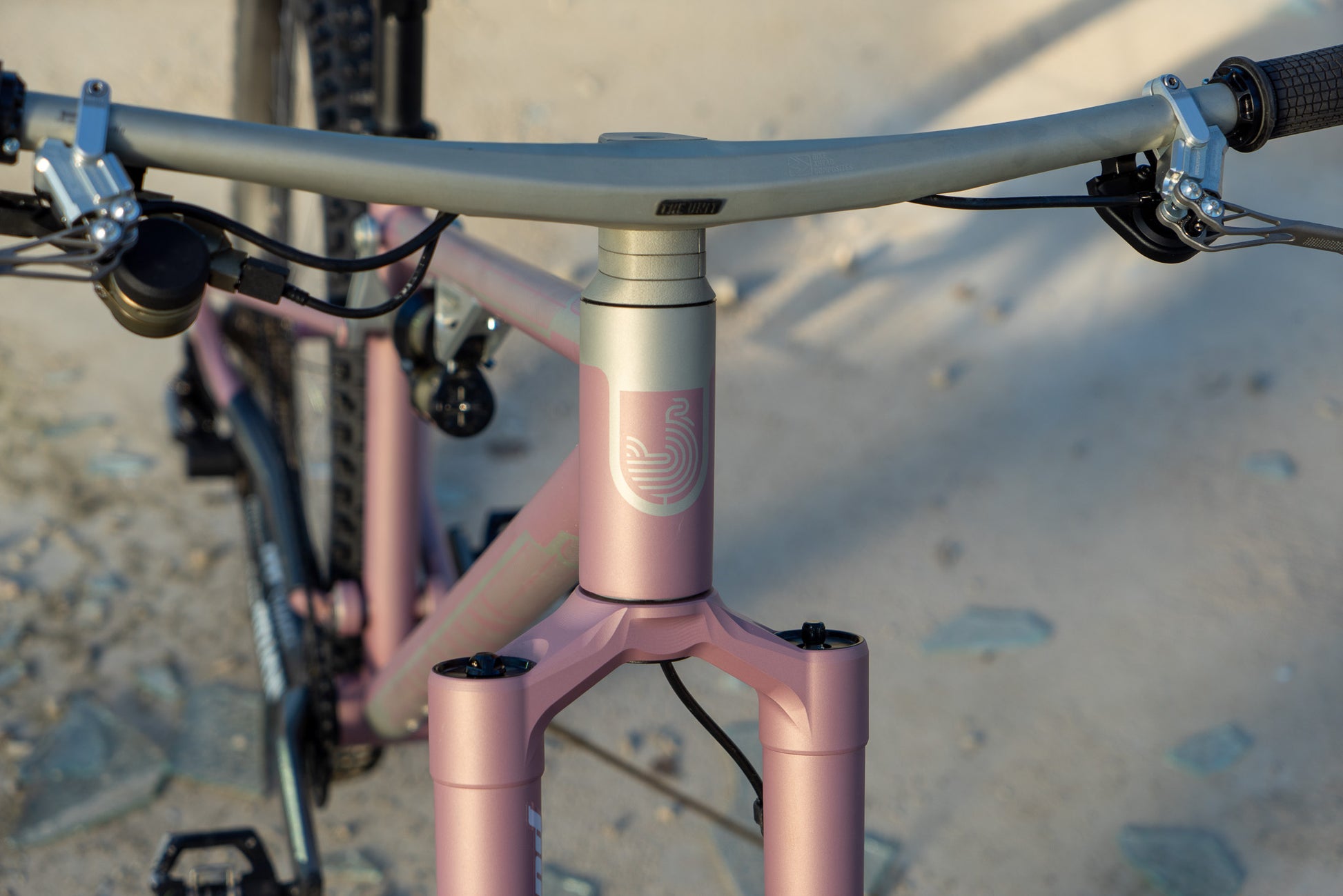

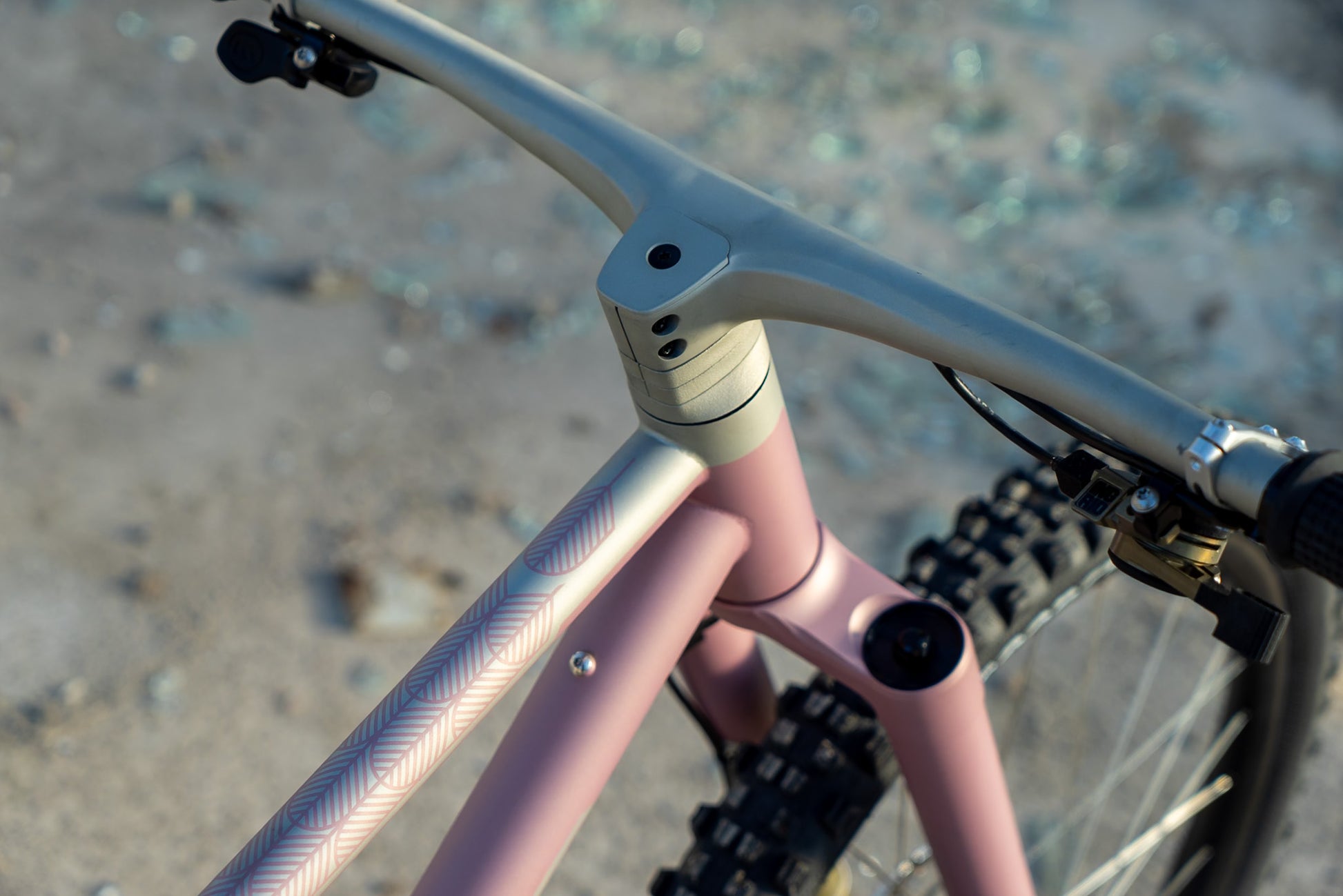

  • ZS 56 headset for internal cable routing, with an option for external routing
  • Screwed T47 bottom bracket for long-lasting durability and ease of maintenance
  • Handcrafted in Germany, built to last a lifetime and designed for sustainability. Made in Germany at BFE in Berlin

Fork & Suspension Details

  • Fork Length: 541mm (130mm)
  • Fork Offset: 44mm
  • Rear Travel: XC (108mm) / Trail (120mm)
  • Shock Fit: 190x40mm (XC) / 190x45mm (Trail)
  • Compatible Shocks: Rock Shox, Fox, Cane Creek, DVO, Push, EXT, Intend

Frame Specifications

  • Headset: ZS56 / ZS56 (top/bottom)
  • Seat Tube: 30.9 mm
  • BB: 73mm T47
  • Chainline: 52mm/55mm
  • Seat Clamp: 35mm
  • Integrated Chain Device: 30-34T
  • Rear Axle: 148x12mm Boost (168mm M12x1)
  • Brake Mount: 180mm FM
  • Max Tyre Size: 29 x 2.5"
  • Dropout Hanger: UDH

Geometry & Size Recommendations

Designed for confidence and comfort, the Chabo offers modern geometry tailored for both technical trail riding and bikepacking.

Model M L XL
Wheel Size 29″/29“ 29″/29“ 29″/29“
Rider Size Range 165-175cm 170-185cm 180-195cm
Reach 450mm 480mm 510mm
Seat Tube Length 400mm 410mm 420mm
Head Tube Length 110mm 120mm 130mm
Head Tube Angle 65.5° 65.5° 65.5°
Chainstay 450mm 450mm 450mm
BB Drop 38mm 38mm 38mm
Effective Seat Angle 78° 78° 78°

Why Steel?

Crafted from Reynolds 853 steel, the Chabo frame delivers unmatched strength, fatigue resistance, and a responsive ride feel. The heat-treated steel allows for thinner tubing while retaining toughness, making it perfect for the demands of long-distance rides and rugged trails. Plus, 100% recycled steel aligns with our sustainability commitment.


Technology

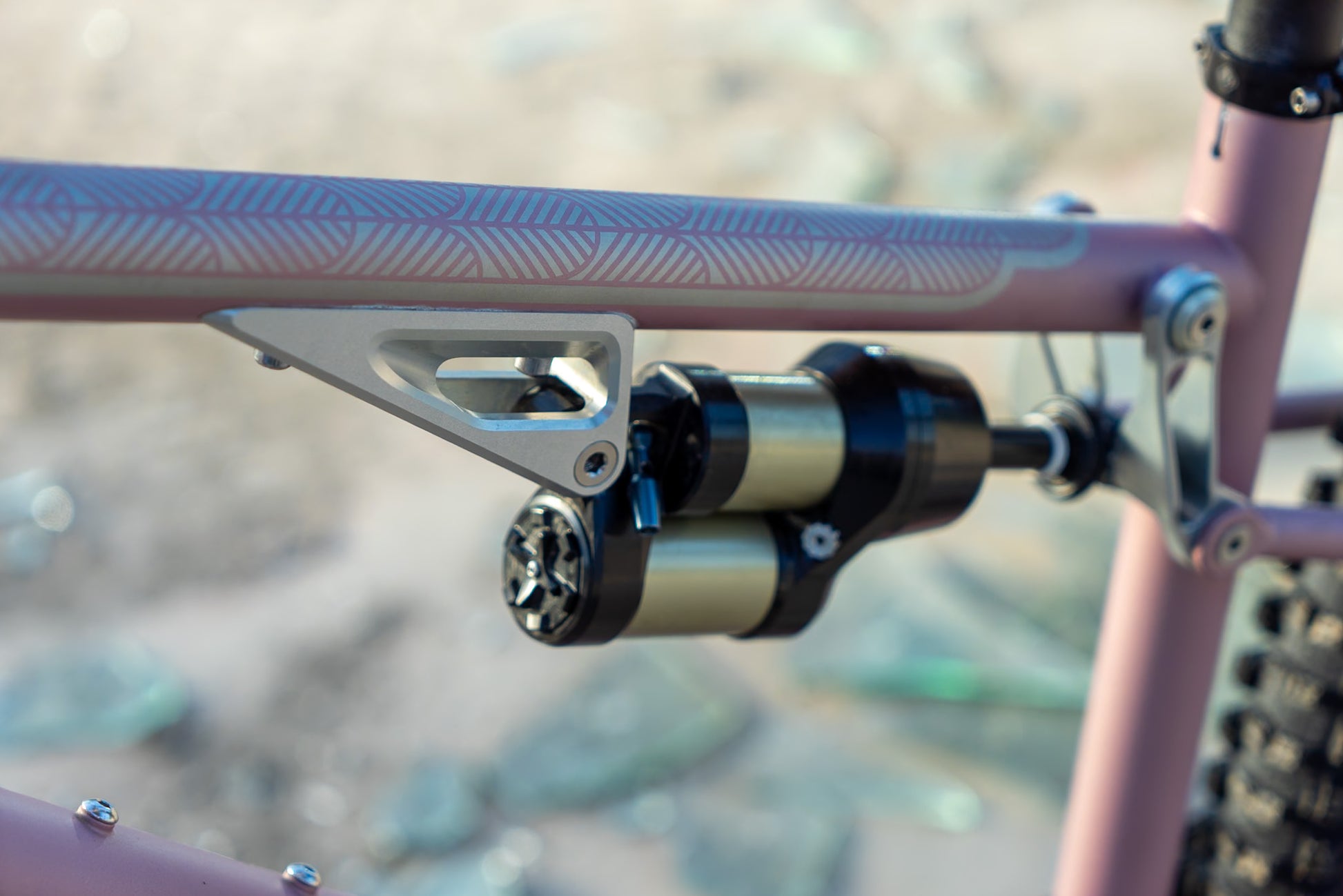

  • The Progressive Flex Pivot Suspension on the Chabo is designed to deliver smooth, responsive performance. With a 16% progression from SAG onwards, this system perfectly balances comfort and control, adapting to challenging terrains. It offers 120mm rear travel with a 190 x 45mm shock, or, for a more cross-country-oriented setup, 108mm rear travel with a 190 x 40mm shock. This versatility allows riders to choose the setup that best suits their adventure style.



  • Internal/External Cable Routing: The Chabo offers flexibility with both sleek internal routing for a clean look and traditional external routing for easier maintenance. Both options are included in the box, so you can decide which setup works best for you without needing to choose upfront.



  • Screwed T47 Bottom Bracket: Ensures strength and long-term durability with easy maintenance options



  • Inside-Out Coating: The Chabo’s frame is treated with a durable KTL coating, which fully coats the frame inside and out, using the same high standards as in the automotive industry. This protective layer is finished with a beautiful Cerakote coating, celebrated for its resilience and sleek appearance. You can choose from four stylish Cerakote colors, and for those wanting something unique, a custom paint job is always an option. This dual-layer coating ensures the Chabo stands out in both durability and style.

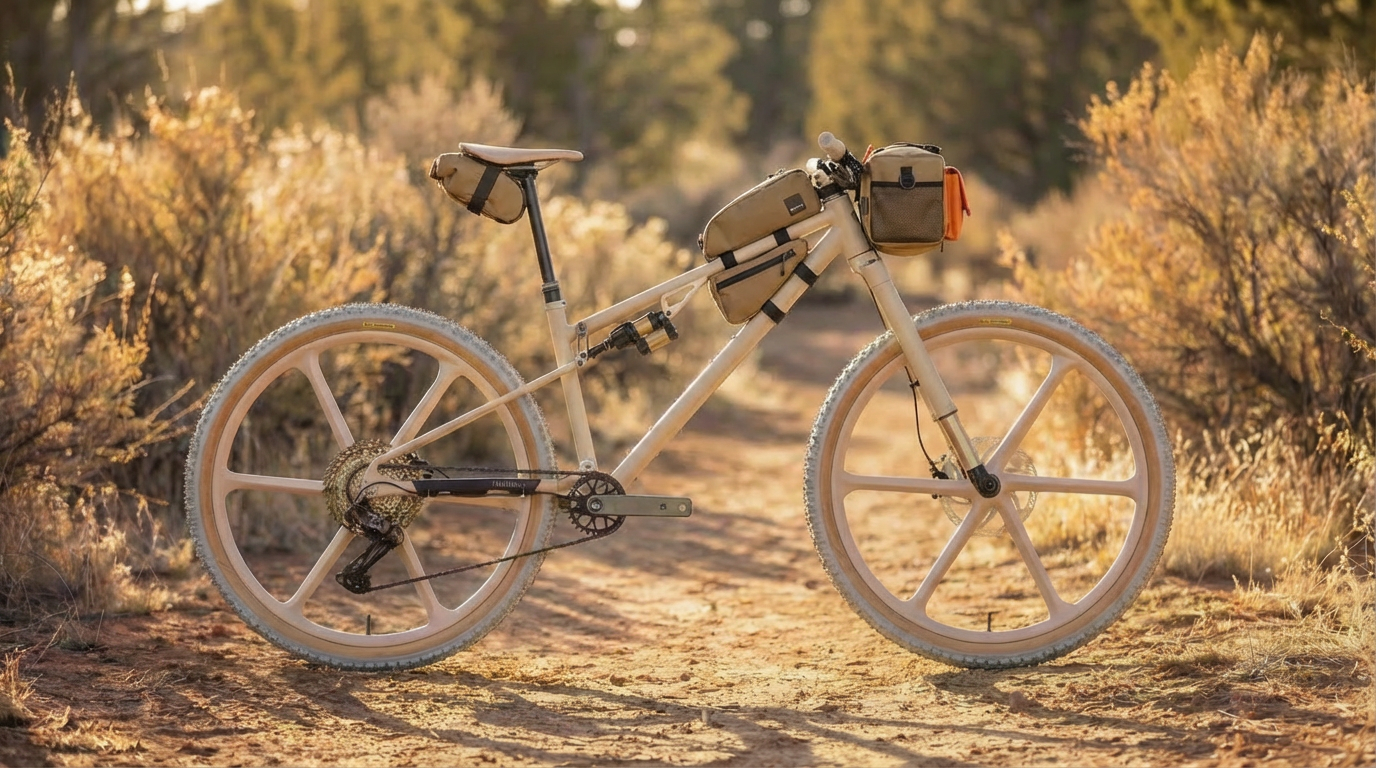

For Bikepackers

With multiple mounting points for bottles and racks, the Chabo is adventure-ready. Its durable steel frame and thoughtful design make it the perfect companion for extended bikepacking trips or long-distance explorations.


Who’s It For?

  • Riders seeking a nimble, responsive bike for technical trails.
  • Those planning multi-day bikepacking trips and requiring a versatile, durable bike.
  • Riders looking for a sustainable, long-lasting bike crafted from recycled materials.

Adventure Awaits

The Chabo is built for riders who live for adventure. With superior craftsmanship, cutting-edge technology, and sustainable materials, it's more than just a bike—it's your gateway to freedom. Whether you're hitting local trails or setting out on a cross-country bikepacking expedition, the Chabo is ready to ride.
